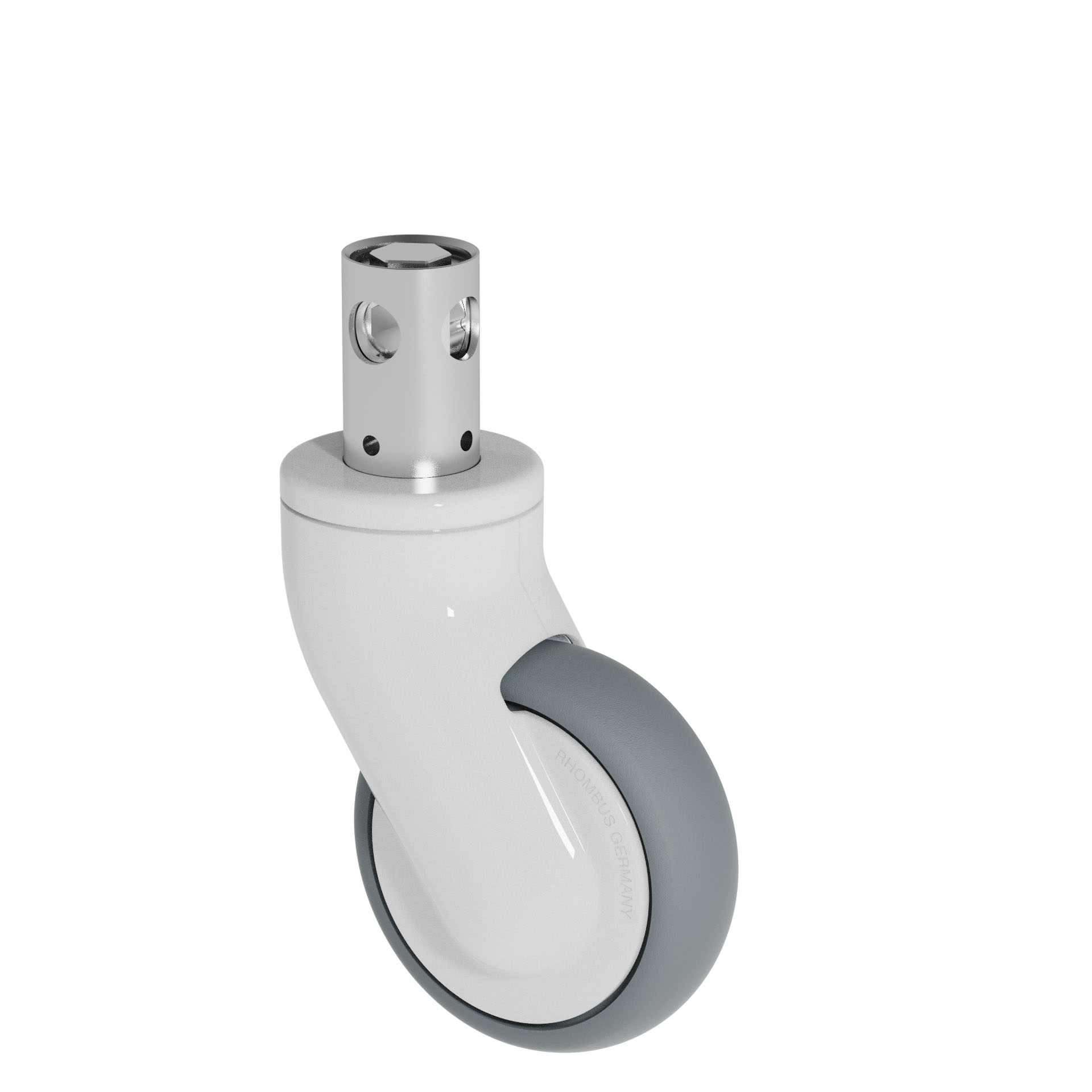

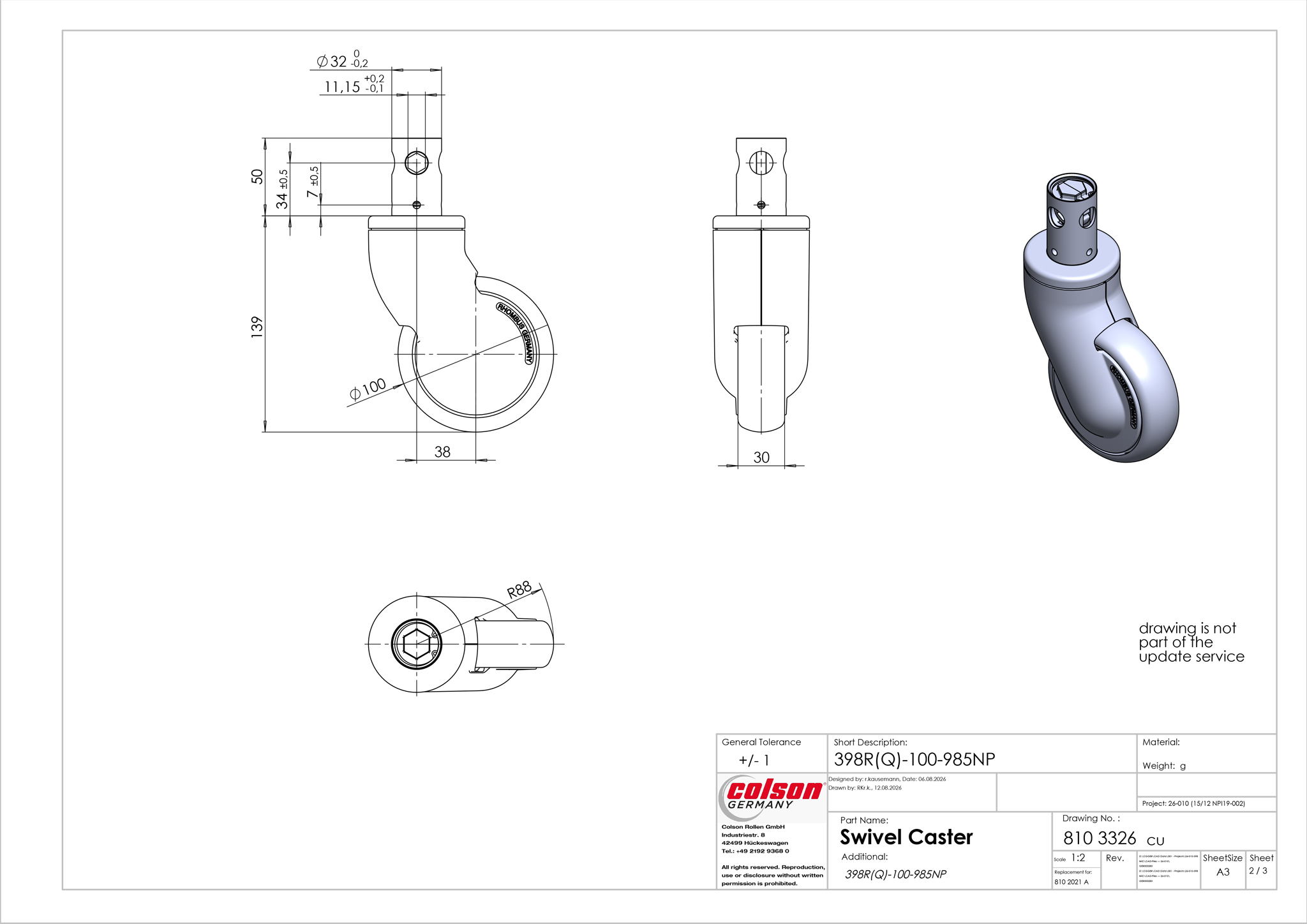

Swivel castor with central total brake, 100 mm - 200 mm, 100 kg - 150 kg

Artikelnummer: 398q 29K100v K985NP (PRIMACY)

Varianten

	Diameter	Loopvlakbreedte	Bouwhoogte	Uitlading	Pin	Draagvermogen
	100 mm	30 mm	139 mm	38 mm	32x50 (30°) mm	100 kg
	100 mm	30 mm	139 mm	38 mm	32x50 (30°) mm	100 kg
398q 29K125v K985	125 mm	32 mm	158 mm	40 mm	32x50 (30°) mm	150 kg
398r 29K125v K985	125 mm	32 mm	158 mm	40 mm	32x50 (30°) mm	150 kg
398q 29K150v K985	150 mm	32 mm	188 mm	42 mm	32x50 (30°) mm	150 kg
398r 29K150v K985	150 mm	32 mm	188 mm	42 mm	32x50 (30°) mm	150 kg
398q 37K200v K985	200 mm	32 mm	229 mm	56 mm	32x50 (30°) mm	150 kg
398r 37K200v K985	200 mm	32 mm	229 mm	56 mm	32x50 (30°) mm	150 kg
